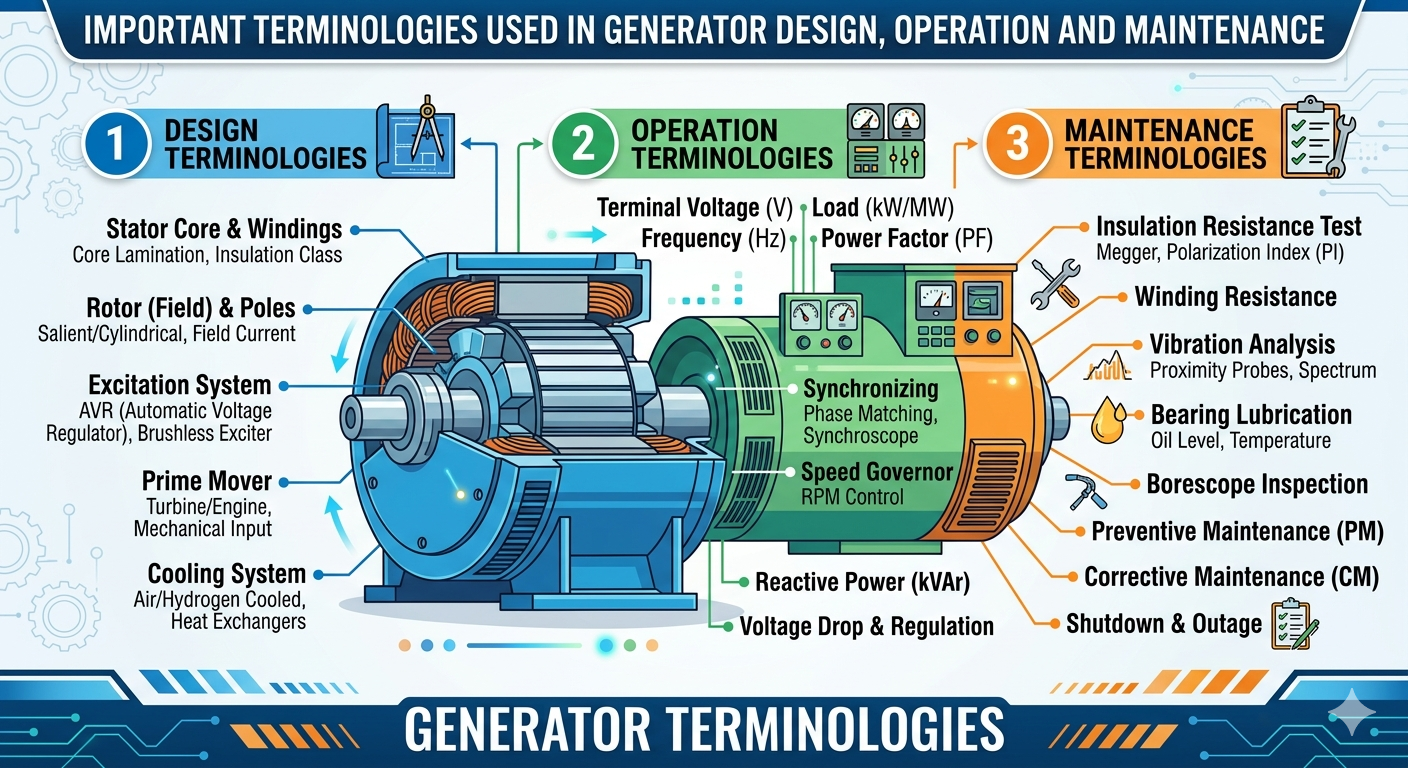

1. What is Heat Run Test of a Generator and Why is it necessary?The Heat Run Test is a critical type of test performed on a generator (typically at the factory or after major refurbishment) to verify that its cooling system is adequate. Its primary purpose is to measure the temperature rise of the generator's internal components (stator windings, rotor windings, core laminations, and bearings) above the ambient coolant temperature when operating at full rated load.
Why Heat Run Test is necessary?
Every generator insulation has a thermal classification (e.g Class F, Class H). Each class has a maximum allowable operating temperature (e.g 155` C for Class F). Exceeding this limit drastically shorten the insulation life (the 10`C Rule - every 10 degree rise halves the insulation life). The Heat Run Test ensures that at full load, at worst steady state conditions, all temperatures remain within safe limits relative to the ambient temperature (usually define as 40`C). It measures the temperature rise (Temp_change = T_rise - T_ambient), not just the absolute temperature.
How this test is conducted?
The main challenge is that during the test, the generator must deliver its full rated power (megawatts) for several hours. Connect it with a real grid, as wasting high power is impractical. So the different loading methods are used:
i. Direct Loading Method (Rare): The generator is connected to the resistive load bank that dissipate the full power as heat. Simple but inefficient and expensive for large generators.
ii. Back-to-Back Method (Common for large hydro/turbo generators ): Two identical generators are mechanically coupled. One runs as a motor (driving the other) and other run as a generator - supplying the electric power to first. Only losses (Winding, Friction, I2R) are need to be supplied from the grid (Very efficient method).
iii. Circulating Current Method (Common in Factories): The generator is short-circuited through a reactor or transformer at a reduced voltage. The field current is increased to produce full load armature current, but voltage is low, so the real power out is near to zero. Only copper losses are simulated, core losses are lower than the normal, so correction are applied.
iv. Open Circuit with over excited (Rare): Simulate core losses by over exciting at no load.
Typical Procedure for Circulating Current or Back-to-Back Method:
i. Initial Measurements: Measure and record the cold resistance of all windings (stator & rotor) at ambient temperature.
ii. Install Sensors: Place thermocouples or resistance temperature detectors (RTDs) at critical points: winding slots, stator core back-iron, bearings, and inlet/outlet cooling air/gas.
iii. Start and Load: Start the generator and bring it to full rated load (MW, MVA, power factor, current, and voltage as per nameplate).
iv. Run Until Stabilization: Operate continuously at full load. This typically takes 3 to 6 hours, but the criterion is thermal stabilization – when the temperature rise does not exceed 1-2°C per hour over a 3-hour period.
v. Record Data: Continuously monitor all temperatures, cooling medium temperatures (air, hydrogen, water), flow rates, and electrical parameters.
vi. Shutdown and Measure Hot Resistance: Immediately after shutdown (within seconds), measure the hot resistance of the windings.
